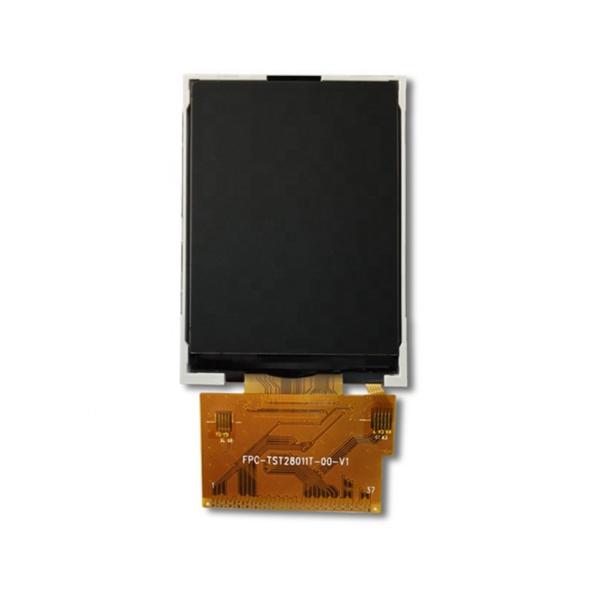

4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage

Place of Origin : Guangdong, China

Model Number : TST28011T-00

Brand Name : TSD

Packaging Details : 275nits Brightness 2.8 Inch Small Size TFT LCD With 240*320 Resolution Display
Packed in anti-static bag each,a certain quantity in one carton

Supply Ability : 50000 Piece/Pieces per Month

MOQ : Negotiable

Price : Negotiable

Display Size : 2.8inch

Type : TFT LCD

Resolution : 240x320

Outline Dimension : 50x69.2x2.29mm

Interface Type : MCU 8/16bit

Active Area : 43.2x57.6mm

Driver IC : ILI9341V

Backlight : 4LEDs, 80mA

Viewing direction : 6 O'clock

Brightness : 275 Cd/m2

Operating Voltage : 2.8-3.3V

Port : Shenzhen/Hong Kong

Contact Now

Product Description
275nits Brightness 2.8 Inch Small Size TFT LCD With 240*320 Resolution Display
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
Item
Specification
Display Mode
2.8''/α-Si TFT/TN/
Transmissive/Normally White
Part NO.
TST28011T-00
Polarizer
0.22mm, EWV
Resolution
240x(RGB)x320
Outline Size
50x69.2x2.29mm
Active Area
43.2x57.6mm
View Direction
6 O'clock
Color Depth
65K/262K
Interface
MCU 816-bit
Driver IC
ILI9341V
Backlight
4LEDs, 80mA,
Surface Lumiannce
275nits
Surface Treatment
Anti-glare
Operating Voltage
2.8-3.3V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
Application
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
Packing & Delivery
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
Customer Photos
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
4LEDs TFT LCD Module 275nits ILI9341V Driver 3.3V Operating Voltage
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
